HS6103 Single Phase Electricity Meter Test Bench
Technical Specifications
1. No. Of test seats: 24 meters
2. Can test both mechanical and electronic meters.
3. Accuracy Class: 0.05 IEC standard
4. Reference meter: 0.05% accuracy class
5. Multiplex voltage trnasformer accuracy class:0.01,rated load per
seats:10VA
6. Current connect type: Dual loop :1-4,3-2
Dual Loop means: Neutral wire and Live wire
7. Output Voltage: 220V or 240V; Adjustment range: 0-120%;
Adjustment resolution: 0.01%
8. Output Current Range: 0-100A;Adjustment range: 0-120%
Adjustment resolution: 0.01%
9. Phase Angle Range: 0-360deg; Adjustment resolution: 0.01 deg
10. Frequency: 45Hz-65Hz,Resolution:0.01Hz.
11. Output wave distortion (both voltage and current): <0.5%
12. Output voltage,current,and power stability: <0.05% /180s
13. Output capacity:Current:1000VA(120A);Voltage:400VA(24 seats)
Current:2000VA(120A);Voltage:800VA(48 seats)
14. Load characteristics: resistive, inductive, and capacitive
(<4uF)
15. Harmonic Wave Output :
2 ~ 21 sub-harmonic wave Contents of Harmonic Wave < 40%
3, 5, 7 sub-harmonic wave coupling, contents of each harmonic wave
<10%
Phase angle control (odd sub-harmonic wave)
Wave group control (sub-harmonic wave)
16. Testing functions:accuracy testing,creep testing(no load
testing),starting
Up testing,harmonic testing,repeatability testing,influencing
testing,dial testing etc.
17. Power supply: 240V, 50Hz.
Main Information:
| No. of test Meters | Standard: 24 and 48 ,Also 3-60 Meters are available |
| Accuracy Class | 0.05% or 0.1% |
| Output Voltage | 220 or 240V,Range:0~125% |
| Output Current | Standard: Max120A Custom: 200A |
| Test Function | Accuracy testing, creep testing(no load testing), starting Up testing, harmonic testing, repeatability testing, influencing testing, dial testing etc. |
| Communication Mode | 1.Bus
2.Seperated Communication Port(MOXA and Serial Port Server) |
Dimensitions:
| integration | stations | Number of rack | dimension:L×W×H | fission | stations | Number of rack | dimension:L×W×H |
| 6 | 1 | 1600×750×1600 | 12 | 1 | 1600×700×1920 |
| 1600X800X1100 | 24 | 1 | 2200×700×1920 |
| 12 | 1 | 1600×750×1920 | 48 | 2 | 2200×700×1920 |
| 24 | 1 | 2200×750×1920 | 60 | 2 | 2000×700×1920 |
| 48 | 2 | 2200×750×1920 | cabinet | 600×800×1920 |
FRONT & REAR

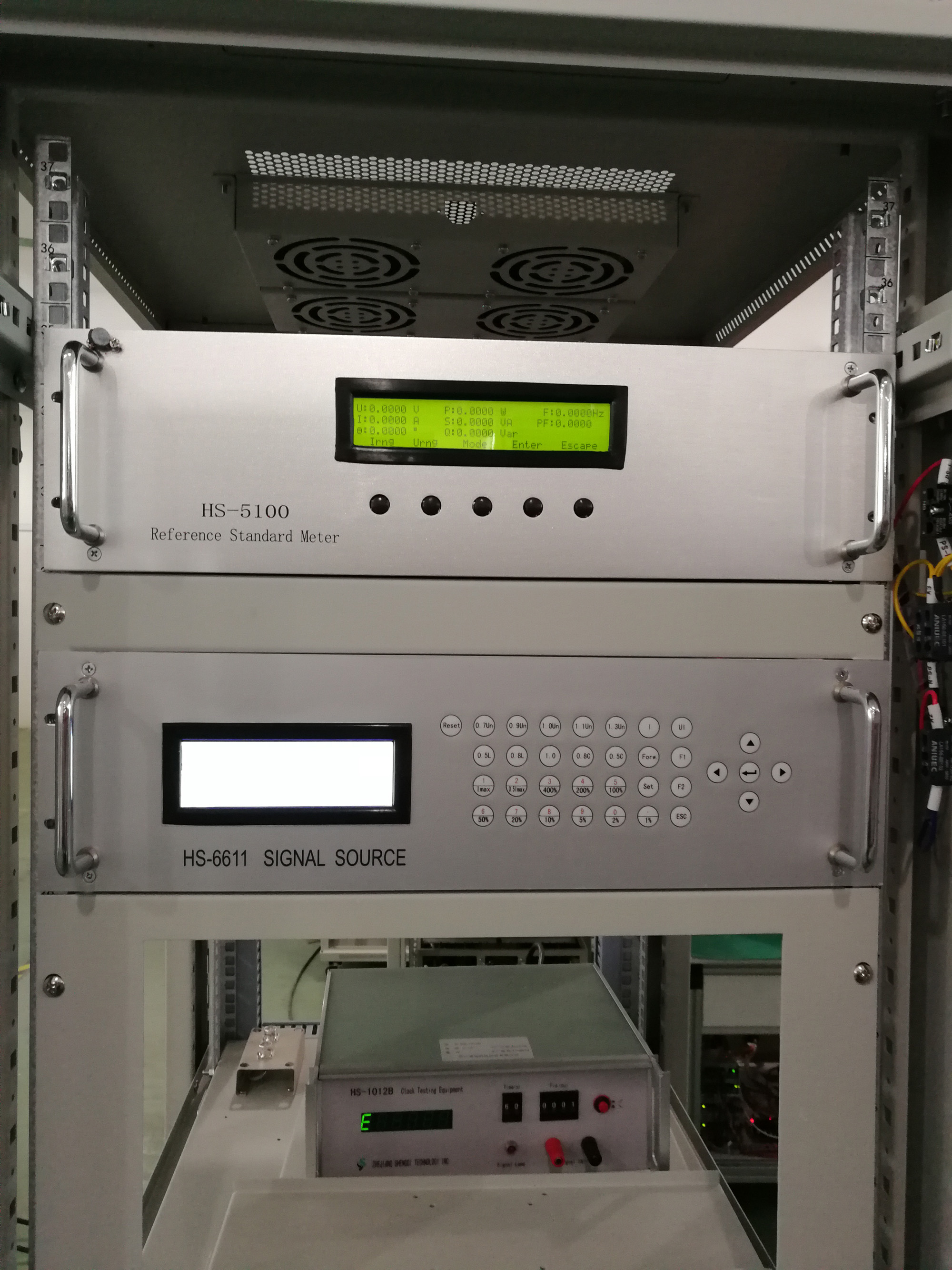

CABINET(REFERENCE METER&SIGNAL SOURCE)
SPECIAL TEST FUNCTION(DAILY TIMING ERROR(clock testing equipment)
