HS-6105 Multi-function Single phase Energy Meter Test Equipment,with dial testing function,32 Meters,0.1% Class

Ask Lasest Price
Brand Name :	SHENGDI TECHNOLOGY
Model Number :	HS6105
Certification :	GS,CNAS
Price :	USD$1~100000/SET
Payment Terms :	TT,LC
Supply Ability :	3000 sets/Years
Delivery Time :	35~45days

Add to Cart

Product Details
Company Profile

HS-6105 Multi-function Single phase Energy Meter Test Equipment,with dial testing function,32 Meters,0.1% Class

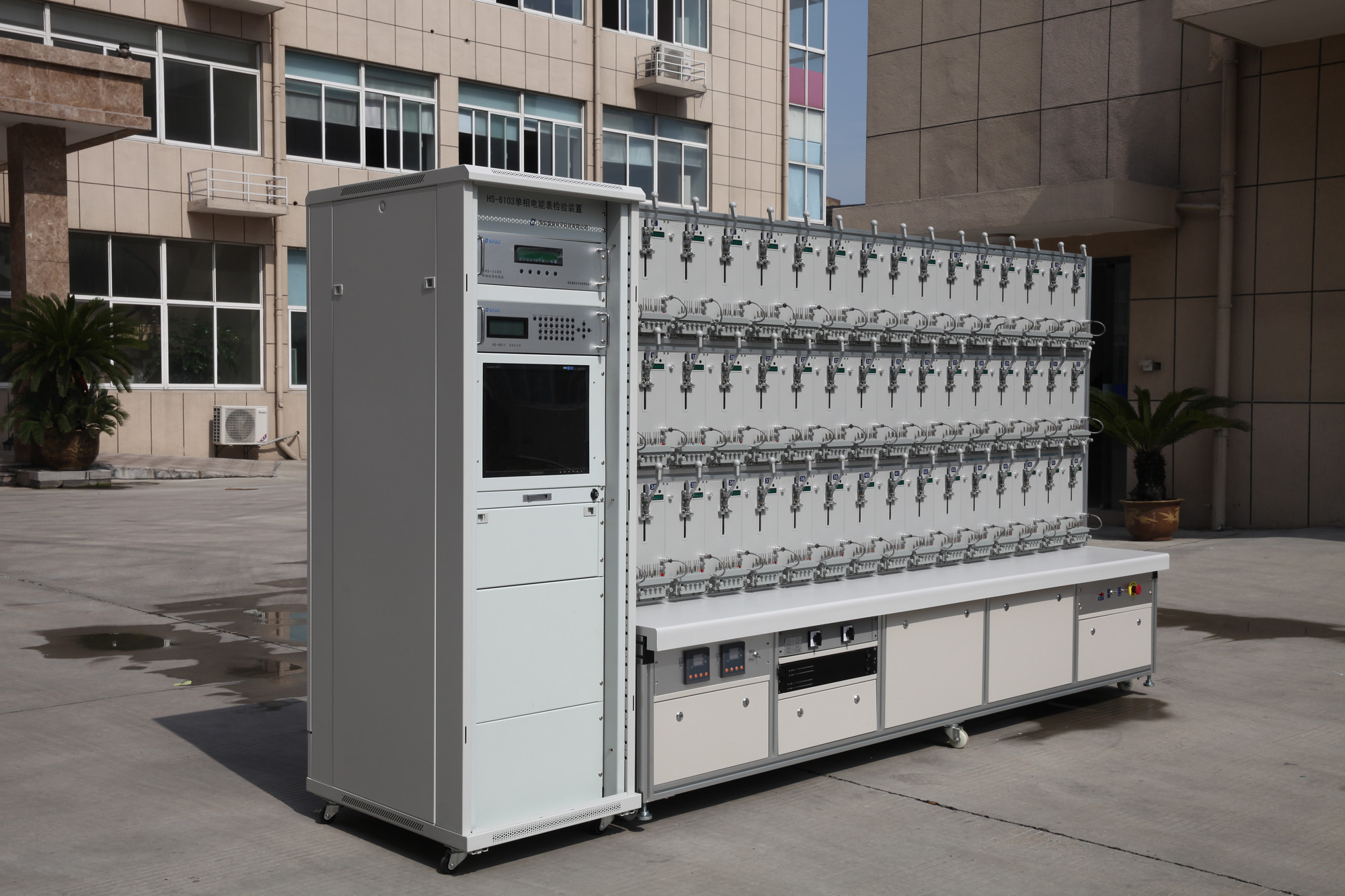

HS-6105 Multi-function Single phase Energy Meter Test bench

Usage:

It is suitable for measurement and testing center of electric power company, measurement department of power supply company and energy meter manufacturer.

This test bench used for dial testing of all kind of single-phase energy meter.

function advantage:

base on A/D and DSP technology
adopt precise digital synthesized technology and sine PWM technology
SPWM technology power amplifier, large capacity, high performance, low power consumption, automatic warning protection
Error processor of each station distributed networking, heavy current protection, support multi-path pulse signal input
One-button checking and control management system, automatic finish as per the project

Dimensions (unit:mm)

integration			fission
stations	Number of rack	Dimension:L×W×H	stations	Number of rack	Dimension:L×W×H
48	1	2600×750×1920	48	1	2600×650×1920
96	2	2600×750×1920	96	2	2600×650×1920
96	2	2600×750×1920	Cabinet	600×800×1850

Technical parmeters

Accuracy Grade		0.1,0.2
Output voltage	Measurement range	220V
	Capacity	≥15VA/ station
	Frequency	45~65Hz
Output current	Measurement range	0.1~100A
	Capacity	≥25VA/station(100A),Max.:3000VA(100A)
Output phase		0°~360°
Output power stability(RSM Mothed)		≤0.1%/120s
Output voltage & current waveform distortion		≤1%(test under linear load)
number of meters		48,96 stations optional or as per customer’s requirement
working power supply		AC 220±10%,50/60Hz,Max. power consumption:2500VA(48 stations)
environment condition		temperature:20℃±5℃；humidity:＜85% R.H.

Function configuration

standard energy meter	●
power source	●
multi-path PT	●
error system	●
multi-path pulse	●
communication interface	○parallel RS-485 ●serial RS-485(bus typed)
consistency function	●
Optoelectronic sampling	〇
GPS clock synchronization	〇

note:●─standard；〇─optional

DETAILS:

HS-6105 Multi-function Single phase Energy Meter Test Equipment,with dial testing function,32 Meters,0.1% Class
