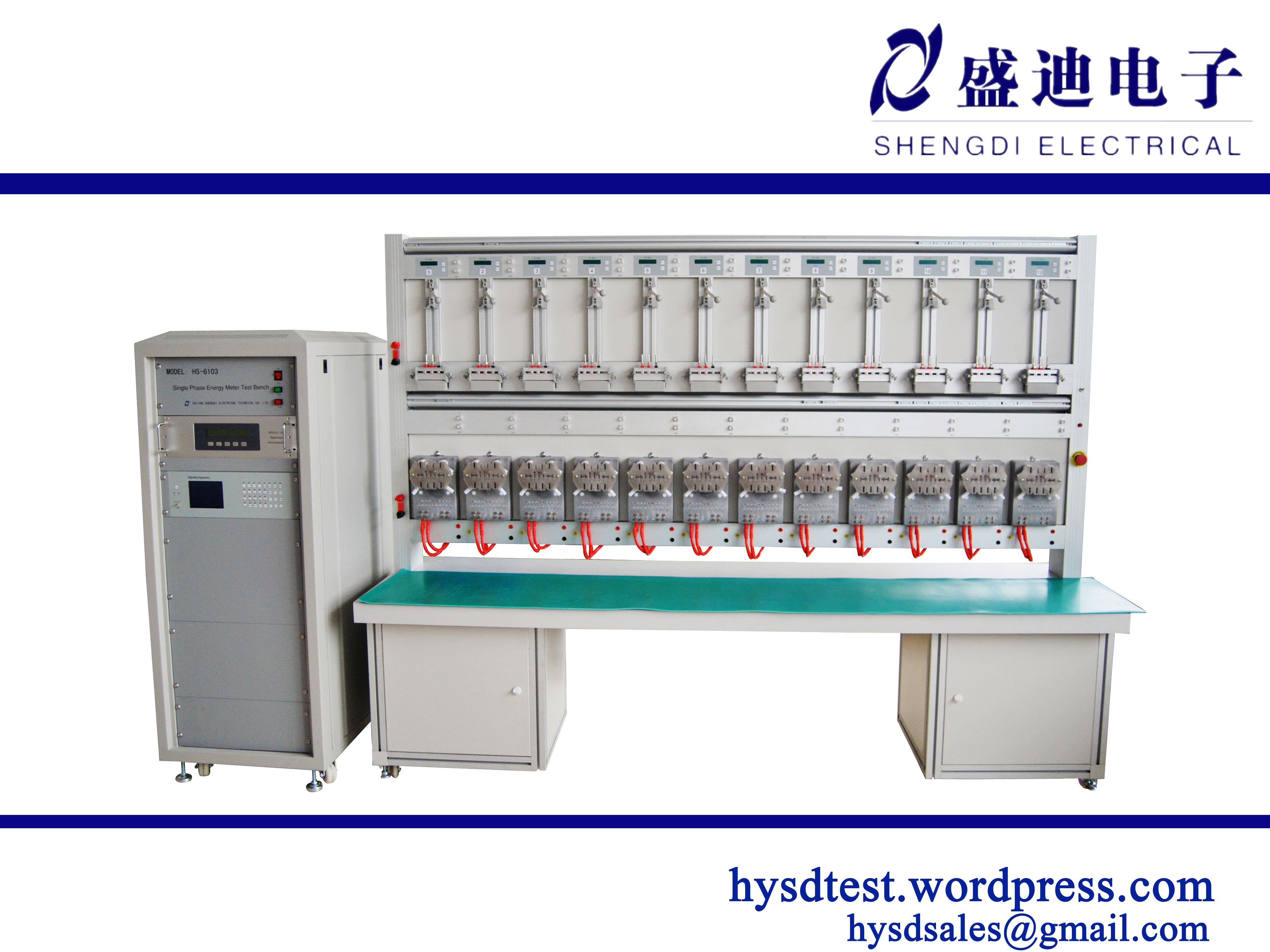

HS-6103 Single-phase energy meter test bench.
Main Information:
| No. of test Meters | 24 Positions (12 IEC Class & 12 ANSI Socket Class) |
| Accuracy Class | 0.05% |
| Output Voltage | 220 or 240V,Range:0~125% |
| Output Current | Standard: Max120A |
| Test Function | Accuracy testing, creep testing(no load testing), starting Up testing, harmonic testing, repeatability testing, influencing testing, dial testing etc. |
| Communication Mode | Serial Port Server (RS232/RS485) |
This Bench Comprises of PWM power source,standard digital energy
meter,error processor,and PC processing software.Can test 3-60
Variors Energy Meter.
Technical Parameters:
1.Accuracy Class:0.05/0.1/0.2 %
2.Standard Energy meter: HS-5100 Single-Phase
Wide-measurement-range Energy Meter,Accuracy class:0.05/0.1/0.2 ;
Multi-path Voltage transformer: Accuracy class:0.01. Rated load per
path: 10 VA
3.Voltage Range(V): 220V(240V Option) Output Range:
0~125%,Resolution:0.01% full range
4.Current Range(A):0.1 ~100A(200A option) Output
Range:0~120%,Resolution:0.0001A(Min)
5. Phase Angle:0.360°.Resolution of phase angle setting:0.01°
6. Frequency: 45Hz ~65Hz,Resolution:0.01Hz
7.Output waveform distortion:Both Voltage and Current ＜0.5%
8.Output Voltage,current and power stability: ＜0.05% /3min
9.Output Capacity:
Current: 1000VA(120A)
Voltage: 400 VA(24 meter testing stations)
If the number of energy meter to be tested is increased whenever
necessary,its maximum load may be extended to current:1800VA, and
Voltage:1000VA
10.Load Characteristics: Resistive,inductive and Capacitive(less
than 4uF)
11.Starting current output:5mA(Min);Accuracy:5%;Starting
power:Accuracy 5%
12.Test Stations: 24/48 (Standard), also 3-60 option.
13.Testing function: Accuracy testing,Creep testing,Starting up
testing,Harmonic testing,repeatability testing,influencing
testing,dial testing etc.
14.Input power supply:220V AC ±10%,50Hz;Max power
consumption:1500VA(24 energy meter testing stations)
15. RS485/Rs-232
16. GPS timing system, HS-1012 standard clock,Option
Dimensions
| Integration | Positions | Racks | Dimension |
| L×W×H(mm) |
| 6 | 1 | 1600 ×750× 1600 |
| 12 | 1 | 1600× 750× 1920 |
| 24 | 1 | 2200× 750 ×1920 |
| 32 | 2 | 1800× 750 ×1920 |
| 40 | 2 | 2000× 750× 1920 |
| 48 | 2 | 2200× 750 ×1920 |
| Fission | Positions | Racks | Dimension |
| L×W×H(mm) |
| 24 | 1 | 2200 ×700× 1920 |
| 32 | 1 | 1800× 700× 1920 |
| 40 | 1 | 2000× 700 ×1920 |
| 48 | 2 | 2200× 700 ×1920 |
| 60 | 2 | 2000× 700× 1920 |
| Cabinet | 600 ×800× 1600
|
