Technical Parameters:

1.Output Voltage: 220V. Output Capacity : Max.50VA

2.Output Current: 0.1A,1A,5A,20A,100A. Output capacity: Max 100VA(100A)

• Output voltage and current distortion not larger than 0.3%(if it is a linear load)
• The variation of pre-set output power within 180S will not exceed 0.02% compared with the measurement range
• Number of harmonic wave: 2-31
• Content of harmonic wave: less than 40%(compared with basewave)
• Phase of harmonic wave: 0°-359.99°
• Reading will be made directly from the standard watt-hour meter
• AC single-phase 220/240(110V also available), 50/60hz, maximum input power consumption: 500W
• Outer dimensions: 510x540x200mm

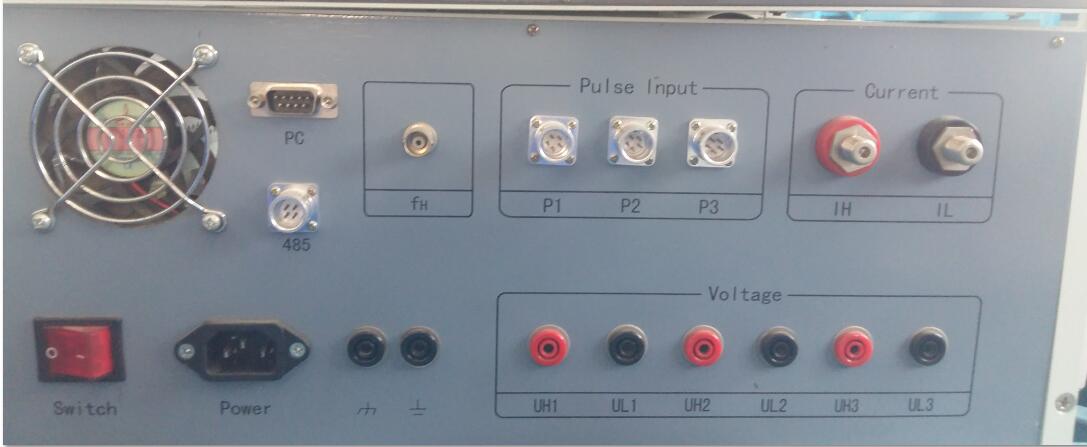

Rear:

Feature:

1.Can test 3 Meters.

2.Can communication with Meter by RS485.

3.Auto test by software.

4.Test Function:

Intrinsic Error,Creeping Test,Start Test,Constant Test,Harmonic Test,Standard deviation,

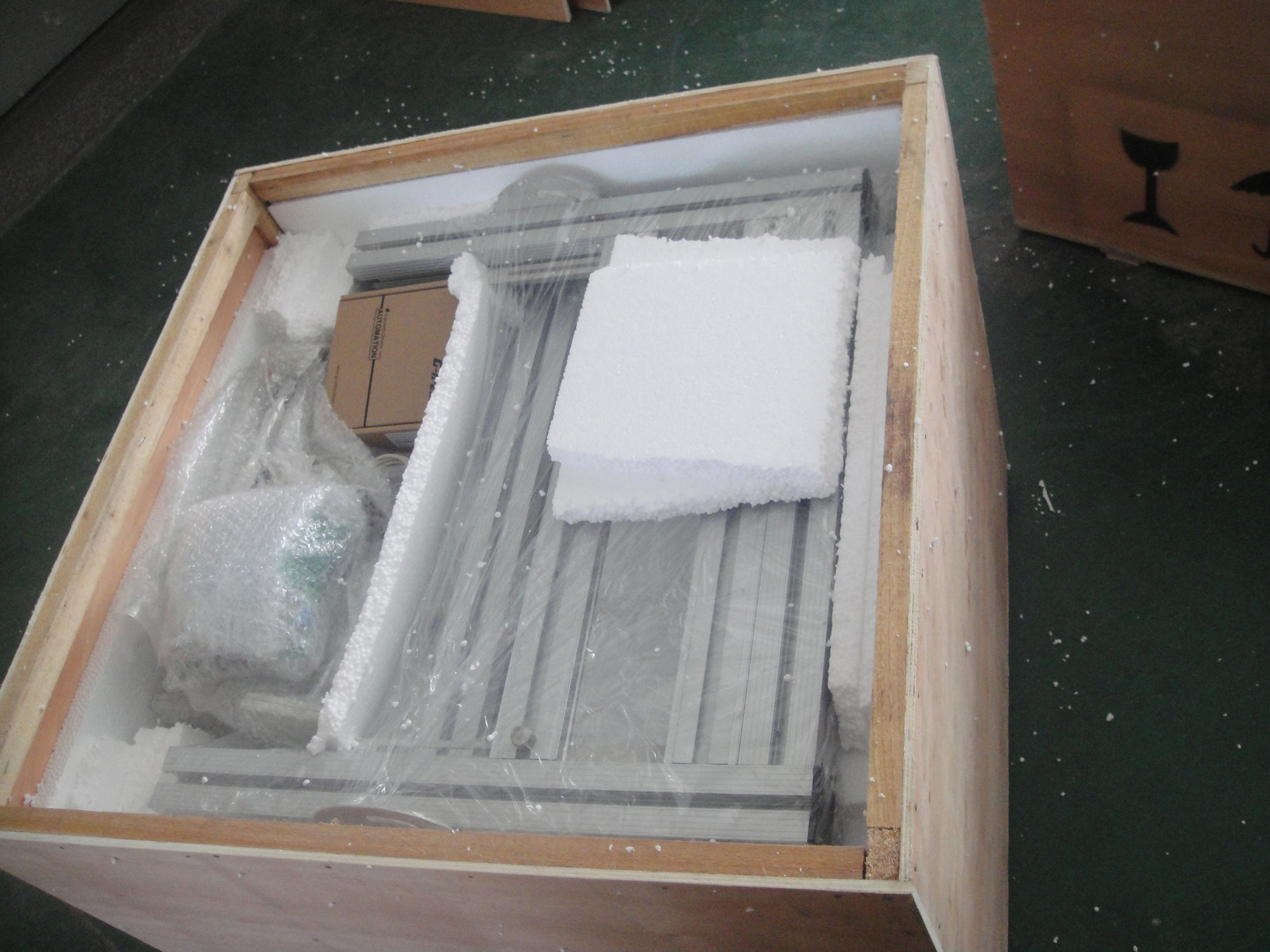

Packing Details:

We are the manufacturer of HS Series Single & Three-Phase Energy meter Test Bench.
