Single Three Energy Meters Test Equipment,1-3 places,0.05% accuracy,Small sized portable,5mA~120A output current range

Ask Lasest Price
Brand Name :	Shengdi Technology
Model Number :	HS3303-P
Certification :	SGS,CNAS
Price :	USD$1~100000/SET
Payment Terms :	T/T.L/C
Supply Ability :	3000 sets/Years
Delivery Time :	30days

Add to Cart

Product Details
Company Profile

Single Three Energy Meters Test Equipment,1-3 places,0.05% accuracy,Small sized portable,5mA~120A output current range

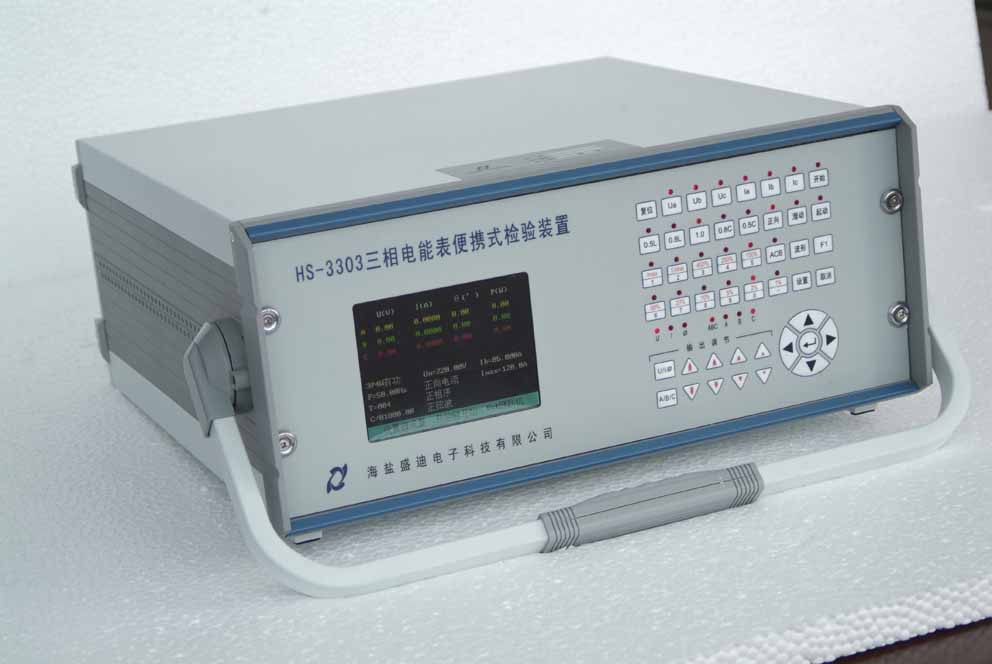

HS 3303 Three Phase Portable Energy Meter Test Equipment
(For testing whole current 3 phase meter and CT meters)

Features:

1.Accuracy: 0.05% Class(Internal Reference Standard Meter)

2.Output Range:

Voltage:20-300V max.50VA;Current:5mA~120A,max.100VA

3.Phase: 0-360°,resolution:0.01°

4.Frequency: 45-65Hz,resolution:0.01Hz

5.THD(Distortion):＜0.5%

6.Stability:＜0.05%/120s

7.Testing meters: 1-3 places 3-phase Open-link Meter

Item	0.05	0.1
Accuracy	HS-5300 0.05/ TC-3000D 0.05(embedded)	HS-5300 0.1/ TC-3000D 0.1(embedded)
Range	voltage(phase):20～300V(40-600V optional) current(phase):5mA～120A
Phase	0～360°,resolution:0.01°(each phase can adjust separately)
F	45～65Hz, resolution:0.01Hz
THD	voltage,current＜0.5%(linear load)
Power stability	＜0.05%/120 s	＜0.1%/120 s
Output content	voltage(each phase):50VA current(each phase):100VA(100A)
Load characteristic	resistive,inductive,capacitive(less than 1uF/each station)
Starting up current	Min. 2mA, accuracy:5%, starting up power: accuracy 5%
Pulse input	≤1kHz
COM. test	RS485/232/ IR/ carrier, support DL/T645-1997/2007,IEC1107
Tested meter	1～3
Working conditions	Temp.:20℃±5℃； Humidity:＜85% R.H.
Input power	AC220±10%,50/60Hz,(AC120V optional);Max. consumption:500VA

Model

Model	Name	Application
HS-3303	three-phase energy meter portable equipment	commissioning,maintenance,development
HS-3303B	three-phase energy meter movable equipment	development,calibration

Functions

Item		HS-3303	HS-3303B
Basic functions	basic error	●	●
	creeping test	●	●
	starting up test	●	●
	standard deviation	●	●
	constants test	●	●
	dial error	〇	〇
	influence test	〇	〇
others	daily timing error ☆		〇
	GPS ☆		〇
	COM. test ☆		〇

Together with Hanging rack and scanning head HD-108 optic head

Rear of the equipment to connect the current,voltage and pulse cables.

HS-3303 Three Phase Energy Meter Test Equipment with 3 Position Meter Rack,internal Reference Meter 0.05% Class Portable Three-phase electrical meter test set,5mA~120A,100VA output capacity,1~3 Places

Single Three Energy Meters Test Equipment,1-3 places,0.05% accuracy,Small sized portable,5mA~120A output current range
